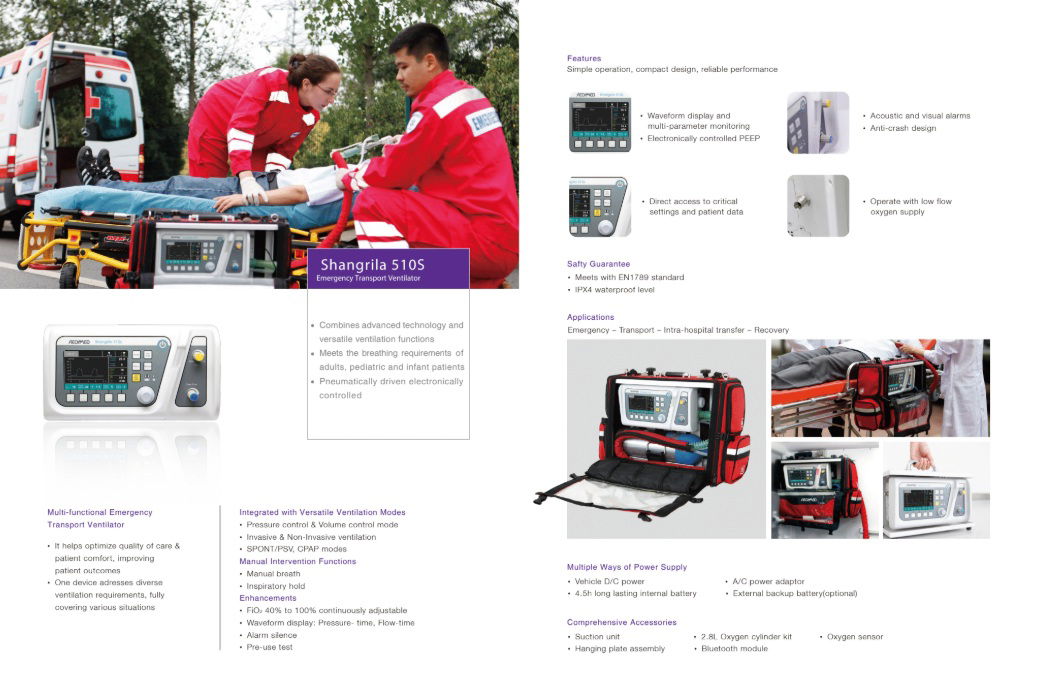

Aeonmed 510S – Transport Ventilator

Product Introduction 510S transport ventilator is a compact, lightweight device designed to provide respiratory support for patients during transport in both in-hospital and out-of-hospital settings. It’s suitable for adults, children, and infants weighing more than 3 kg. The ventilator integrates multiple ventilation modes and monitoring functions to ensure patient safety and ease of operation. Key Features * Compact & Portable: Lightweight design (≤ 4.5 kg), compact for ambulance, stretcher, or emergency use. * Multiple Power Options: Operates on AC, DC, or built-in lithium battery (≥ 4 hours backup), ensuring continuous operation during transport. Multiple Ventilation Modes: * A/C (VC) SIMV (VC) + PSV CPAP + PSV Standby Intuitive Interface: * 5.0″ color screen with rotary knob and keys for quick parameter adjustment and waveform display. Monitoring Parameters: * Tidal Volume (Vt) * Respiratory Rate (RR) * Minute Volume (MV) * Peak Pressure (Ppeak) PEEP * FiO₂ *I:E Ratio *Pressure-Time Waveform Advanced Alarms: Built-in alarm system for: * High/low pressure * Apnea * Power failure * Low battery * Disconnection * Oxygen supply failure * Tidal volume errors * High respiratory rate Optional Oxygen Module: * Built-in or external oxygen module with adjustable FiO₂ (21–100%). Technical Specifications * Parameter Specification * Tidal Volume (Vt) 50 – 1500 mL * Respiratory Rate 1 – 80 bpm * PEEP 0 – 20 cmH₂O * FiO₂ (with module) 21% – 100% * I:E Ratio 1:10 – 4:1 * Inspiratory Time 0.2 – 3 s * Pressure Support (PSV) 0 – 40 cmH₂O * Trigger Sensitivity –20 to 0 cmH₂O * Power Supply AC 100–240 V, DC 12–15 V * Battery Rechargeable lithium, ≥ 4 hours * Dimensions 340 × 260 × 112 mm * Weight ≤ 4.5 kg * Application Scenarios * Ambulance transport * Emergency rooms * ICU transfers * Intra-hospital patient movement * Field rescue and disaster response Accessories (Standard & Optional) Standard: * Patient circuit * Power cable * Carrying handle/strap * User manual * Oxygen connection hose Optional: * Trolley * External oxygen module * Mounting bracket * External battery pack * Compliance & Certifications CE Certified * Meets ISO standards for medical ventilators * Designed according to EN 794-3 & IEC 60601-1

---
